Track LP filter coefficients

Linear Prediction analysis of audio signals using the autocorrelation method and Durbin recursion, implemented in the libassp C library (Scheffers 2012) . Returns per-frame RMS amplitudes and direct-form LP filter (predictor) coefficients. Use trk_lpc when direct-form LP coefficients are needed for synthesis or spectral estimation.

Usage

trk_lpc(listOfFiles = NULL,
  beginTime = 0.0,
  centerTime = FALSE,
  endTime = 0.0,
  windowShift = 5.0,
  windowSize = 20.0,
  effectiveLength = TRUE,
  window = 'BLACKMAN',
  analysisOrder = NULL,
  preemphasis = -0.95,
  toFile = FALSE,
  explicitExt = NULL,
  outputDirectory = NULL,
  assertLossless = NULL,
  logToFile = FALSE,
  keepConverted = FALSE,
  convertOverwrites = FALSE,
  verbose = TRUE)

Arguments

listOfFiles: Character vector of audio file paths. Any format supported by av is accepted; non-native inputs are transcoded automatically.
beginTime: Start time for the extracted portion in seconds. Default: NULL (beginning of signal). Note: uses beginTime/endTime (seconds) matching DSP function conventions, unlike read_audio() which uses begin/end.
centerTime: Numeric or logical. Single-frame analysis time point in seconds; overrides beginTime, endTime, and windowShift. Default FALSE.
endTime: The end time of the section of the sound files that should be analysed (in seconds). Use 0 for end of file.
windowShift: Numeric. Frame shift in milliseconds; sets output frame rate (1000 / windowShift Hz). Default 5.0 ms (200 Hz). Must be strictly less than 32 ms (the 512-sample analysis window at 16 kHz). Values other than the training default (5 ms) may slightly reduce accuracy.
windowSize: Numeric. Smoothing filter window size in milliseconds, applied to both median (periodicity) and mean (F0) post-processing filters. Default 15 ms.
effectiveLength: Logical. Make window size effective rather than exact. Default FALSE.
window: Character. Analysis window function type. Default "BLACKMAN". See AsspWindowTypes for supported types.
analysisOrder: Integer. Number of lag coefficients per frame. 0 sets order to sample rate in kHz + 3 (e.g. 19 for 16 kHz audio). Default 0.
preemphasis: Numeric. Pre-emphasis factor (-1 <= val <= 0); default is sample-rate- and nominalF1-dependent.
toFile: Logical. If TRUE, write SSFF output files and return the count written. If FALSE, return an AsspDataObj (single file only). Default TRUE.
explicitExt: By default, a character "d" will be prepended to the file name suffix when writing the output to file. The user can also specify an explicit extension which will be used instead.
outputDirectory: The directory where the slice file should be stored. If not defiled (NULL), the sparse slice file will placed in the same folder as the media file.
assertLossless: Character vector of additional file extensions to treat as losslessly encoded.
logToFile: Logical. Write processing log to a file in outputDirectory rather than the console. Default FALSE.
keepConverted: Logical. Retain intermediate transcoded files. Default FALSE.
convertOverwrites: Logical. Allow transcoding to overwrite existing files. Default FALSE.
verbose: Logical. Show a progress bar (sequential path) or a progress-aware parallel apply (pbapply/pbmcapply, if installed).

Value

If toFile = FALSE: an AsspDataObj with tracks:

RMS[dB]: REAL32, dB, n_frames x 1. RMS amplitude of the input frame.
gain[dB]: REAL32, dB, n_frames x 1. RMS amplitude of the LP residual.
LPCi: REAL32, dimensionless, n_frames x analysisOrder columns. Direct-form LP predictor coefficients a_1 … a_p (expands to LPC1…LPCp).

Frame rate: 1000 / windowShift Hz (default 200 Hz). If toFile = TRUE: integer count of files written, returned invisibly.

Details

Coefficients are the direct-form LP predictor coefficients (a_1 … a_p) from the Durbin recursion. See trk_rfc for parameter details. The LPC spectrum can be evaluated by trk_lps_spectrum.

References

Scheffers M (2012). “Advanced Speech Signal Processor.” https://sourceforge.net/projects/libassp/files/libassp/.

Author

Raphael Winkelmann

Lasse Bombien

Fredrik Nylén

Examples

path2wav <- list.files(system.file("samples", "sustained", package = "superassp"),
                       pattern = glob2rx("a1.wav"), full.names = TRUE)
res <- trk_lpc(path2wav, toFile = FALSE)
#> Applying `lpcana()` to 1 recording

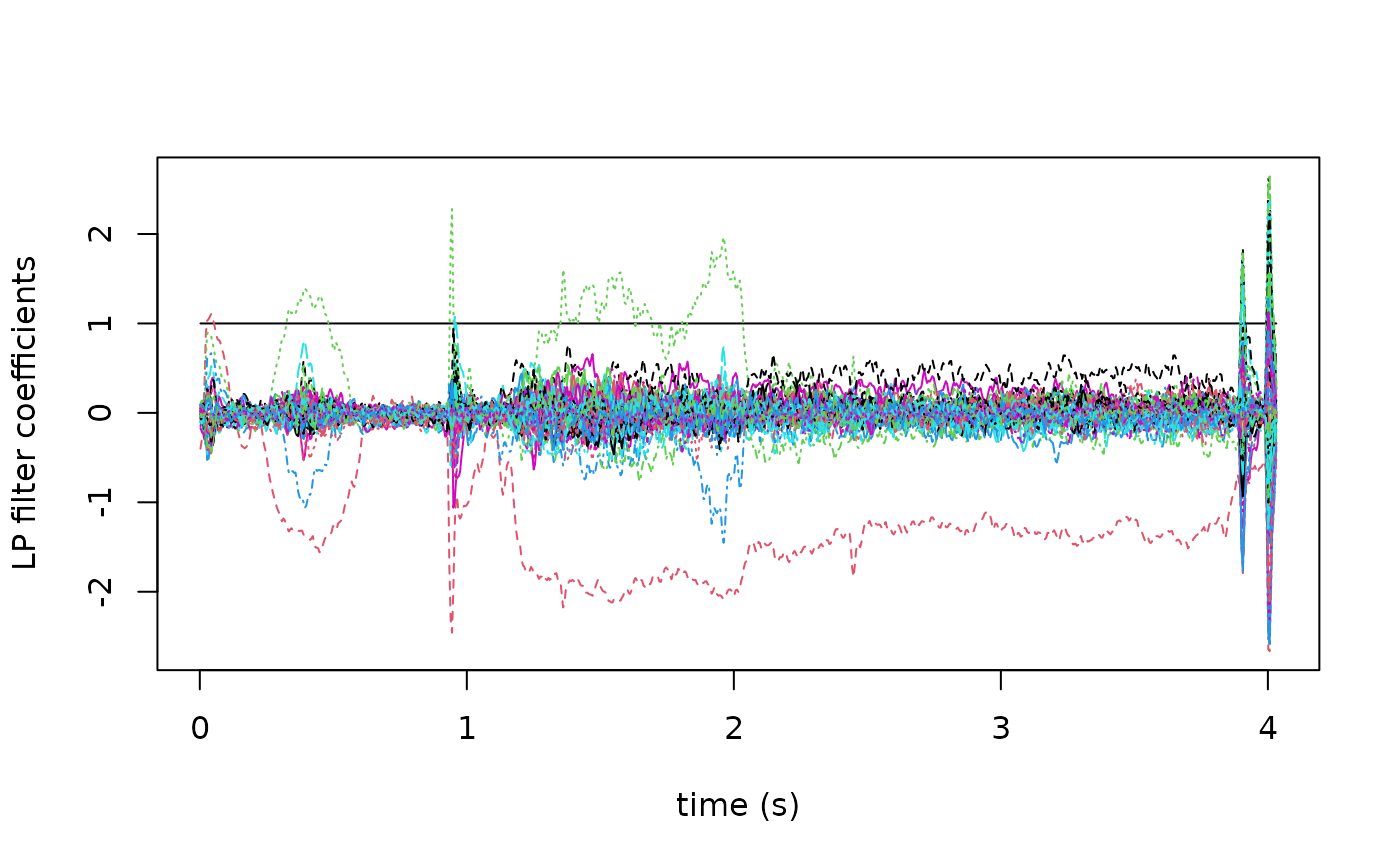

matplot(seq(0, n_records(res) - 1) / sample_rate(res) +
          attr(res, "startTime"),
        res[["LPCi"]], type = "l",
        xlab = "time (s)", ylab = "LP filter coefficients")
