Composable Plotting with autoplot and autolayer

Source: vignettes/autoplot-autolayer.Rmd
autoplot-autolayer.Rmd

Overview

pladdrr provides autoplot( ) and autolayer() methods following the ggplot2 convention for visualizing acoustic data.

  • autoplot(object) - Creates a complete ggplot for a single Praat object
  • autolayer(object) - Returns layers to add to an existing plot

This pattern allows combining multiple objects in one plot:

autoplot(spec) +
  autolayer(pitch) +
  autolayer(formant)

Basic Usage: Single Object Plots

Each Praat object type has an autoplot( ) method that creates an appropriate visualization.

# Load example sound
sound <- Sound$new(system.file("extdata", "test.wav", package = "pladdrr"))

Sound Waveform

autoplot(sound)

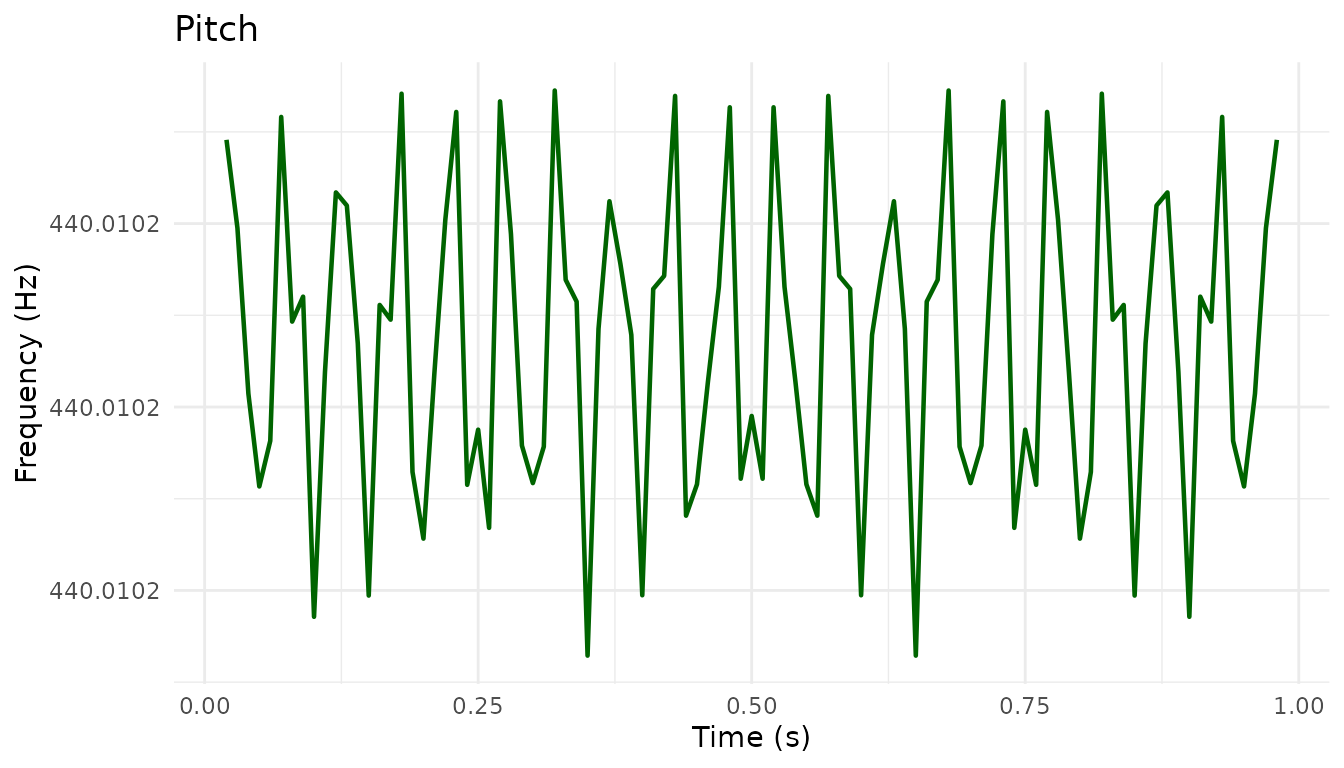

Pitch Contour

pitch <- sound$to_pitch()
autoplot(pitch)

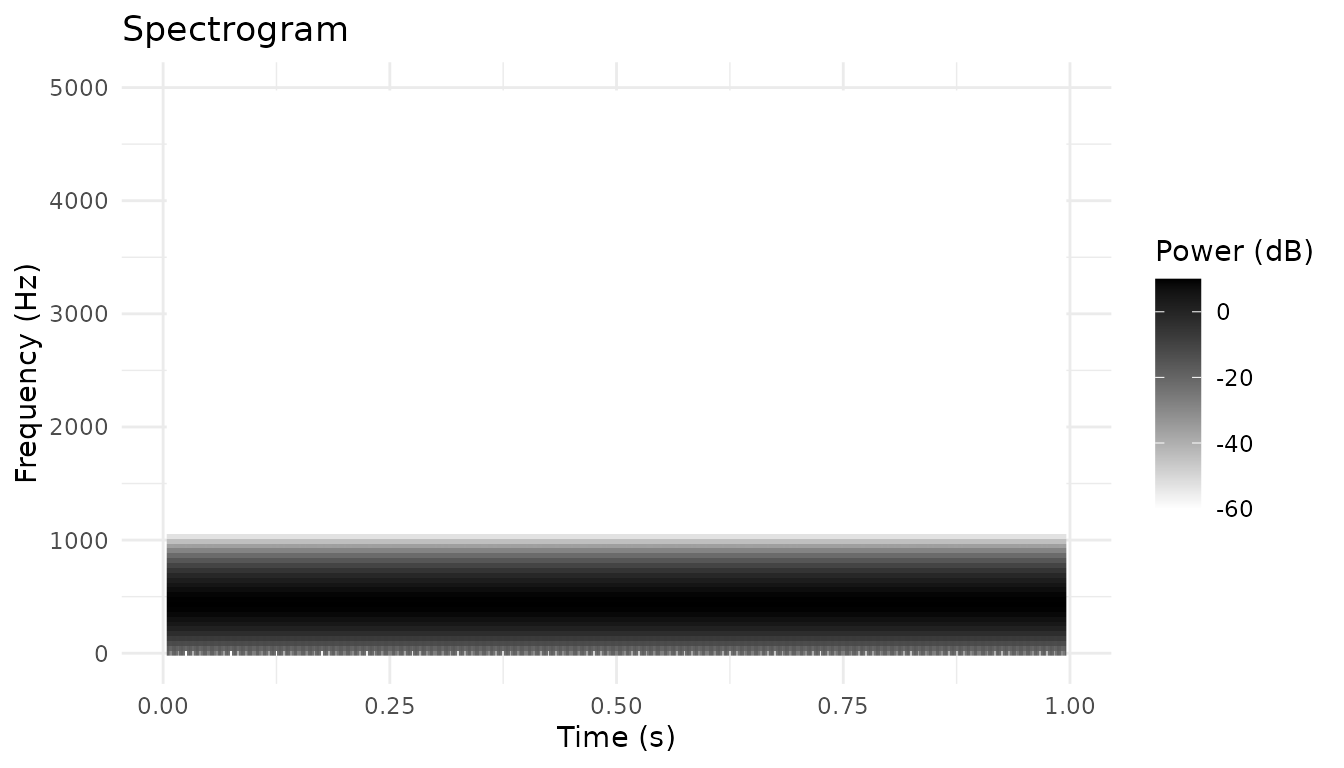

Spectrogram

spec <- sound$to_spectrogram()
autoplot(spec, to_freq = 5000)

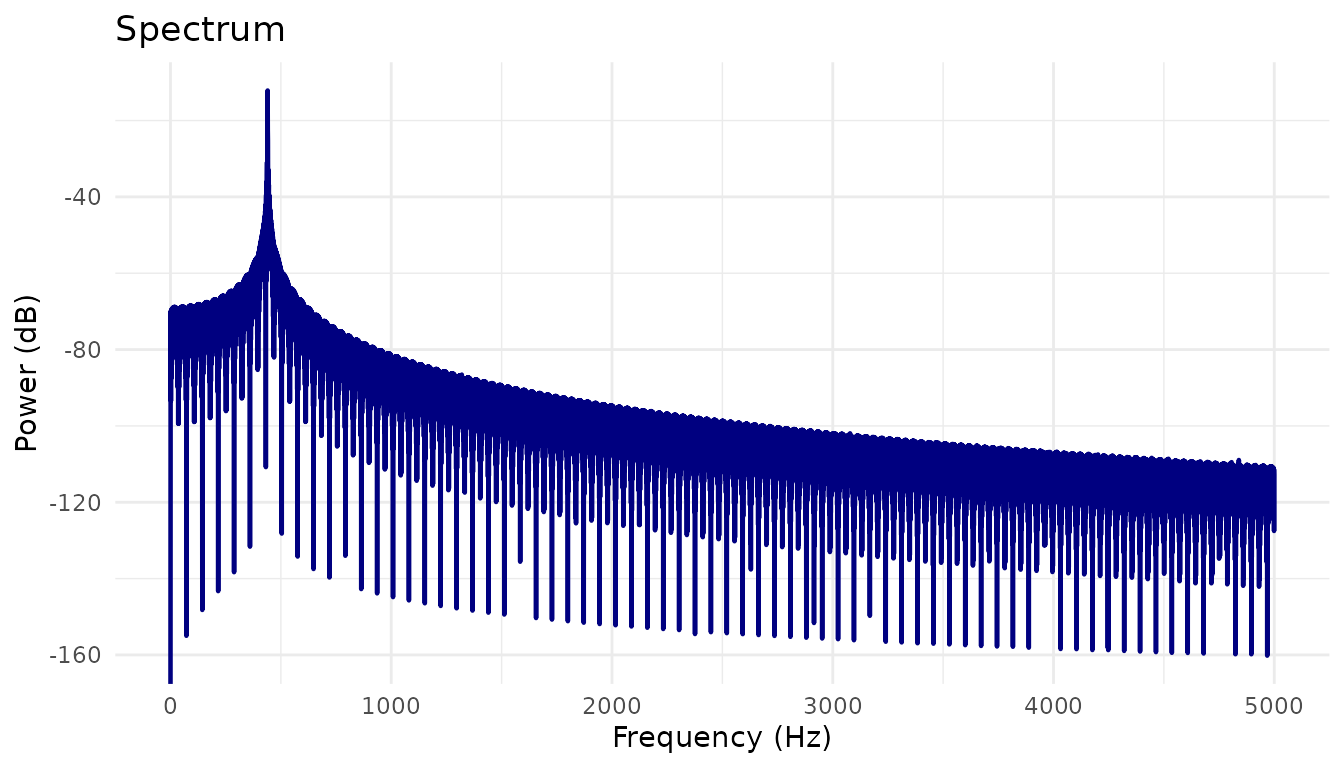

Spectrum

spectrum <- sound$to_spectrum()
autoplot(spectrum, to_freq = 5000)

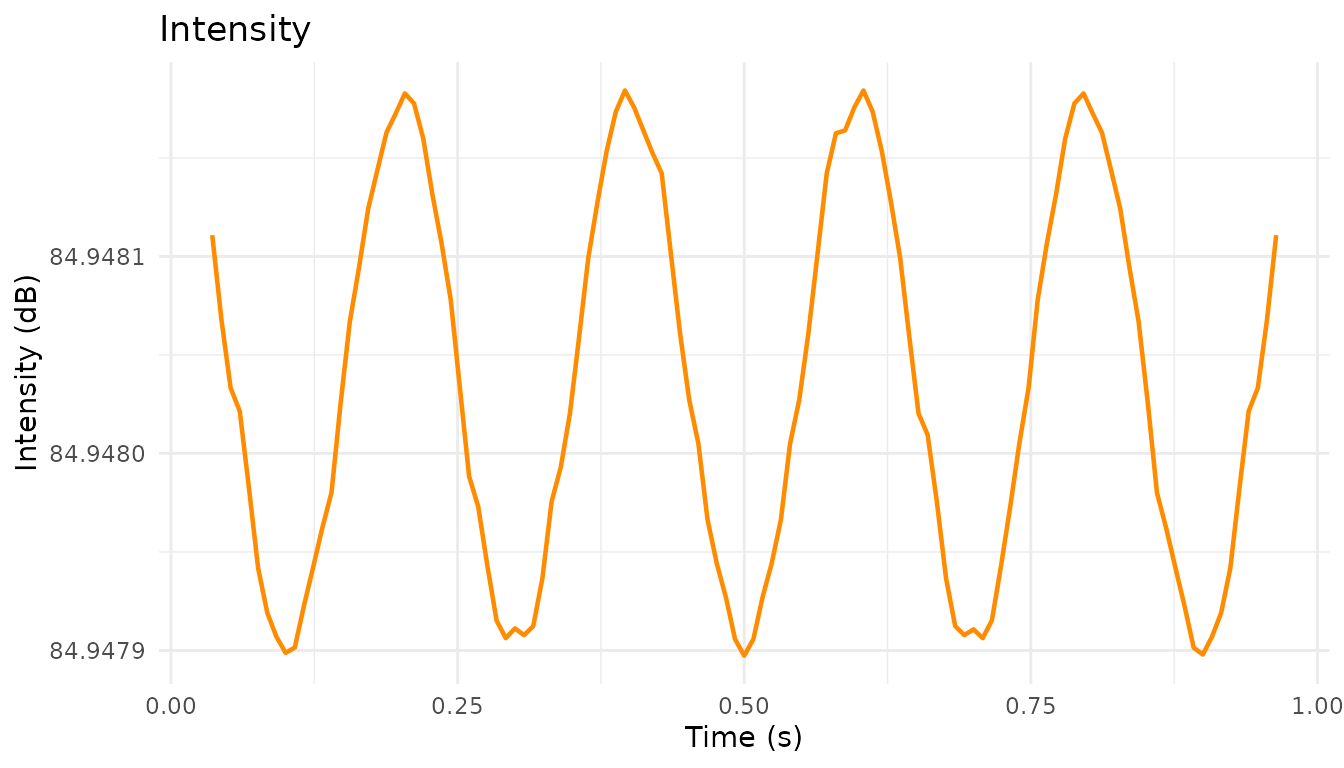

Intensity

intensity <- sound$to_intensity()
autoplot(intensity)

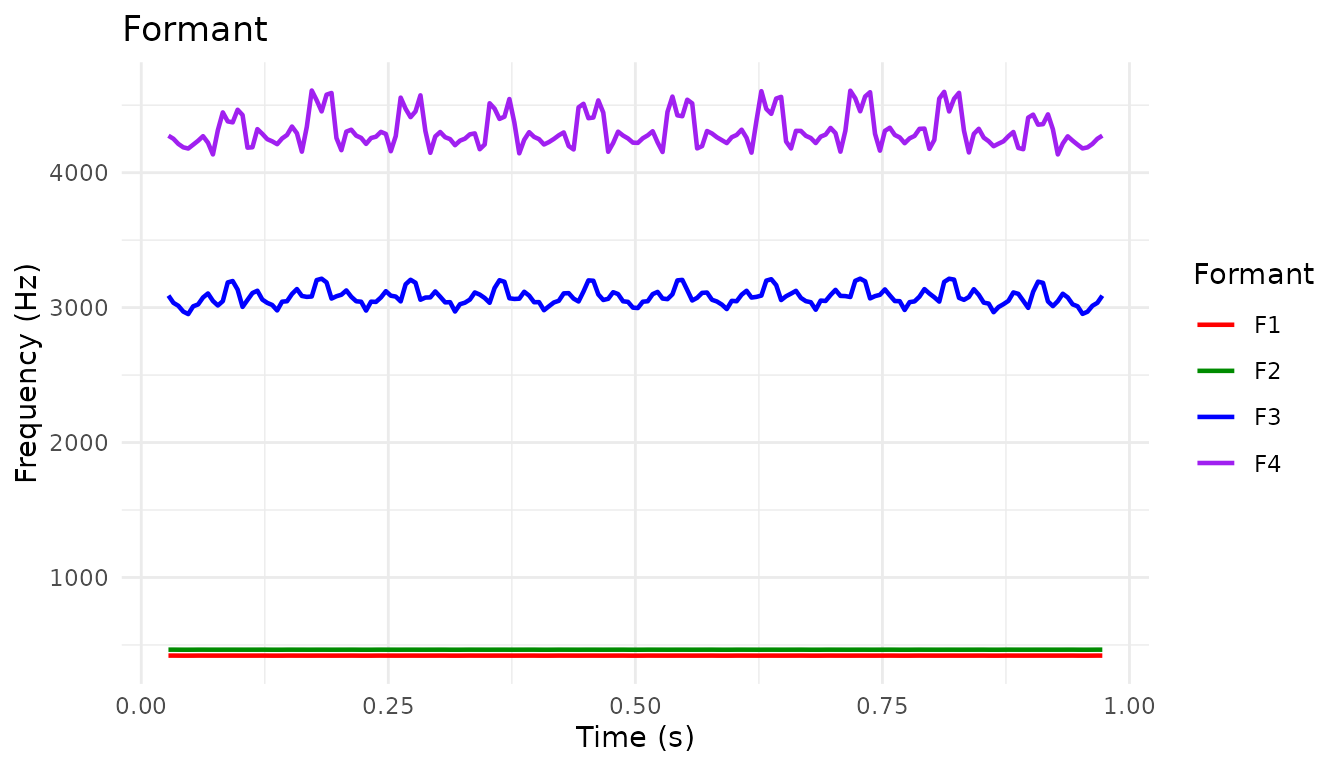

Formants

# Formant extraction may fail on some sounds (e.g., if too short or no voiced
#  content)
formant <- tryCatch(
  sound$to_formant_burg(),
  error = function(e) {
    message("Formant extraction failed, using synthesized vowel")
    kg <- klattgrid_create_from_vowel(duration = 0.3, f0start = 120)
    kg$to_sound()$to_formant_burg()
  }
)
autoplot(formant, max_formant = 4)

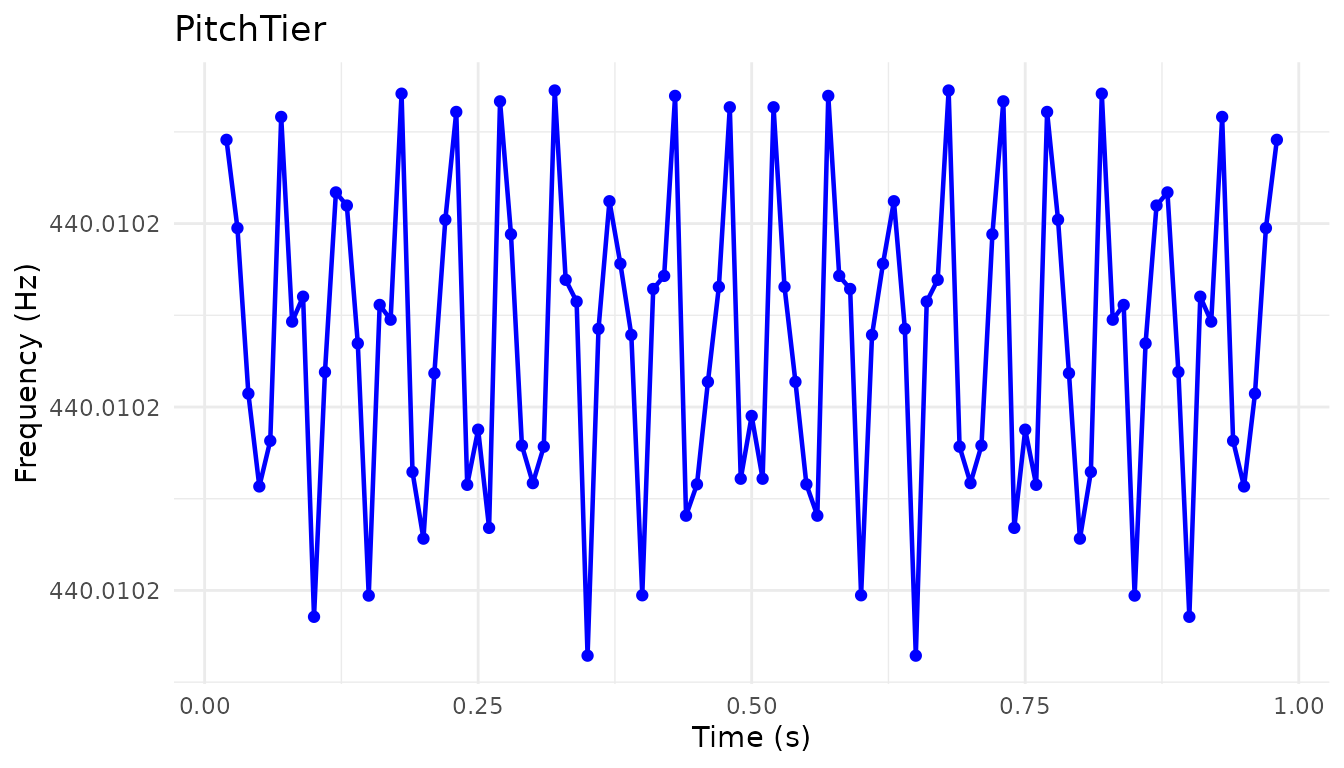

Pitch Tier

A PitchTier stores sparse, hand-editable F0 points (as opposed to Pitch’s dense per-frame contour) — it’s what you get from pitch$down_to_pitch_tier(), and it’s the object type Praat scripts manipulate when resynthesizing prosody.

pitch_tier <- pitch$down_to_pitch_tier()
autoplot(pitch_tier)

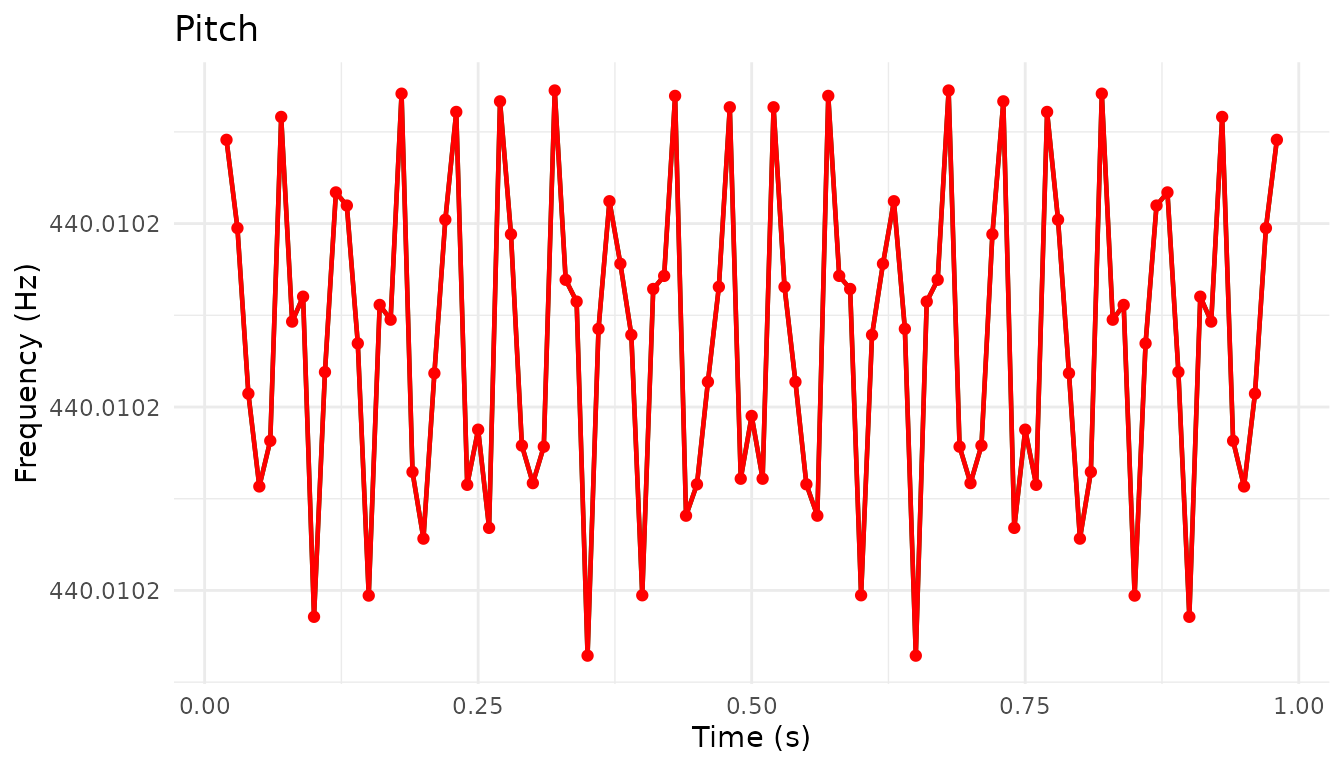

Overlay the sparse tier points on the dense pitch contour with autolayer():

autoplot(pitch) +
  autolayer(pitch_tier, color = "red")

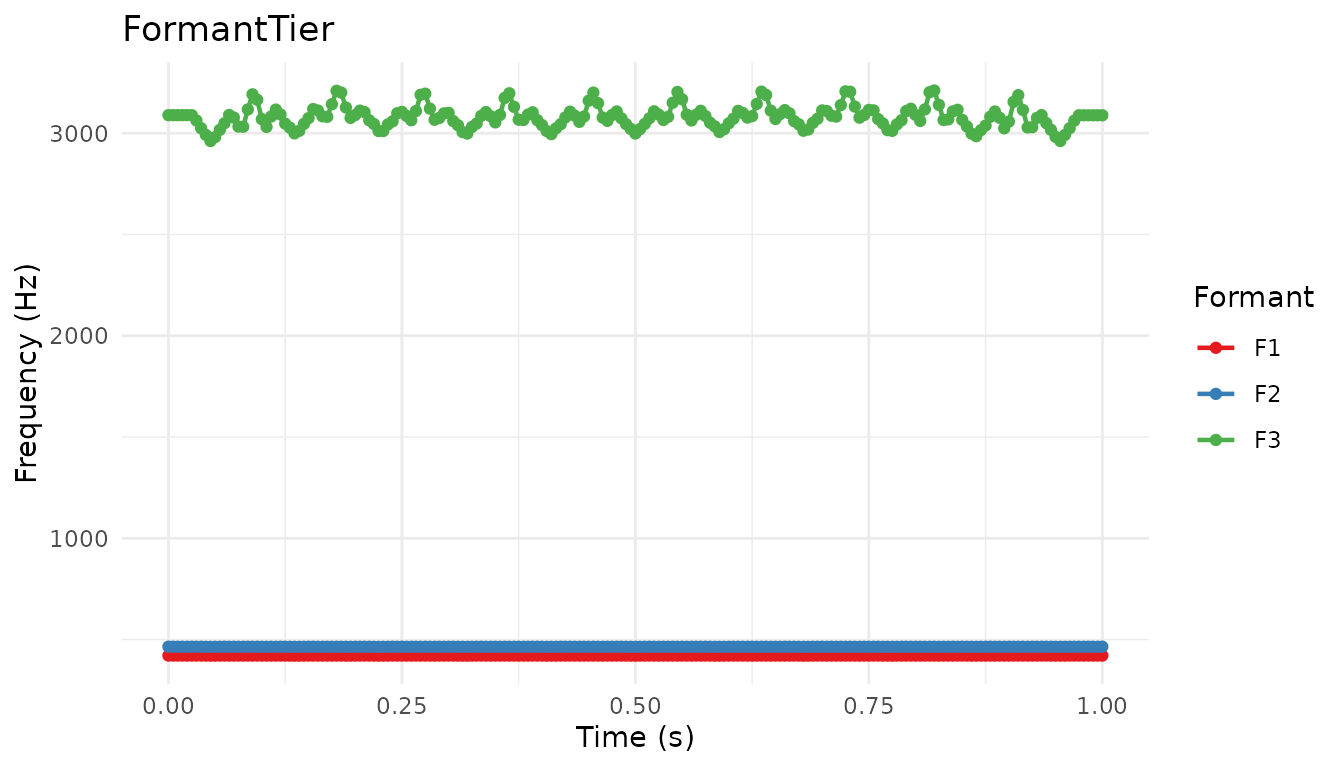

Formant Grid and Formant Tier Styles

A FormantGrid holds formant frequency points directly (the editable structure behind Klatt synthesis), while a FormantTier is a downsampled view of a Formant object. FormantTier’s style argument switches between "speckle" (default, one point per Praat-selected candidate) and "line" (one interpolated point per fixed time step).

grid <- FormantGrid(tmin = 0, tmax = 1, number_of_formants = 3)
grid$add_formant_point(1, 0.5, 500)
grid$add_formant_point(2, 0.5, 1500)
grid$add_formant_point(3, 0.5, 2500)
autoplot(grid)

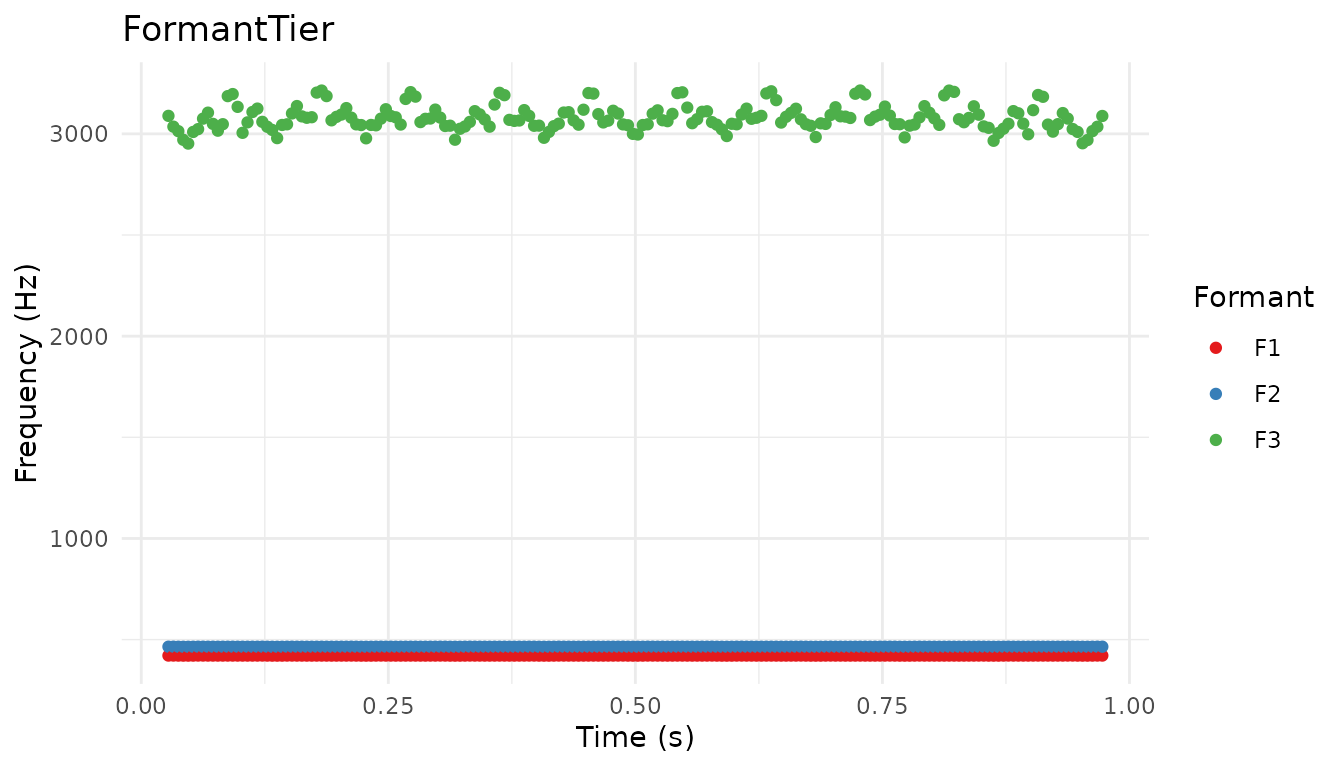

formant_tier <- FormantTier$from_formant(formant)
autoplot(formant_tier)                  # style = "speckle" (default)

autoplot(formant_tier, style = "line")  # interpolated at a fixed time step

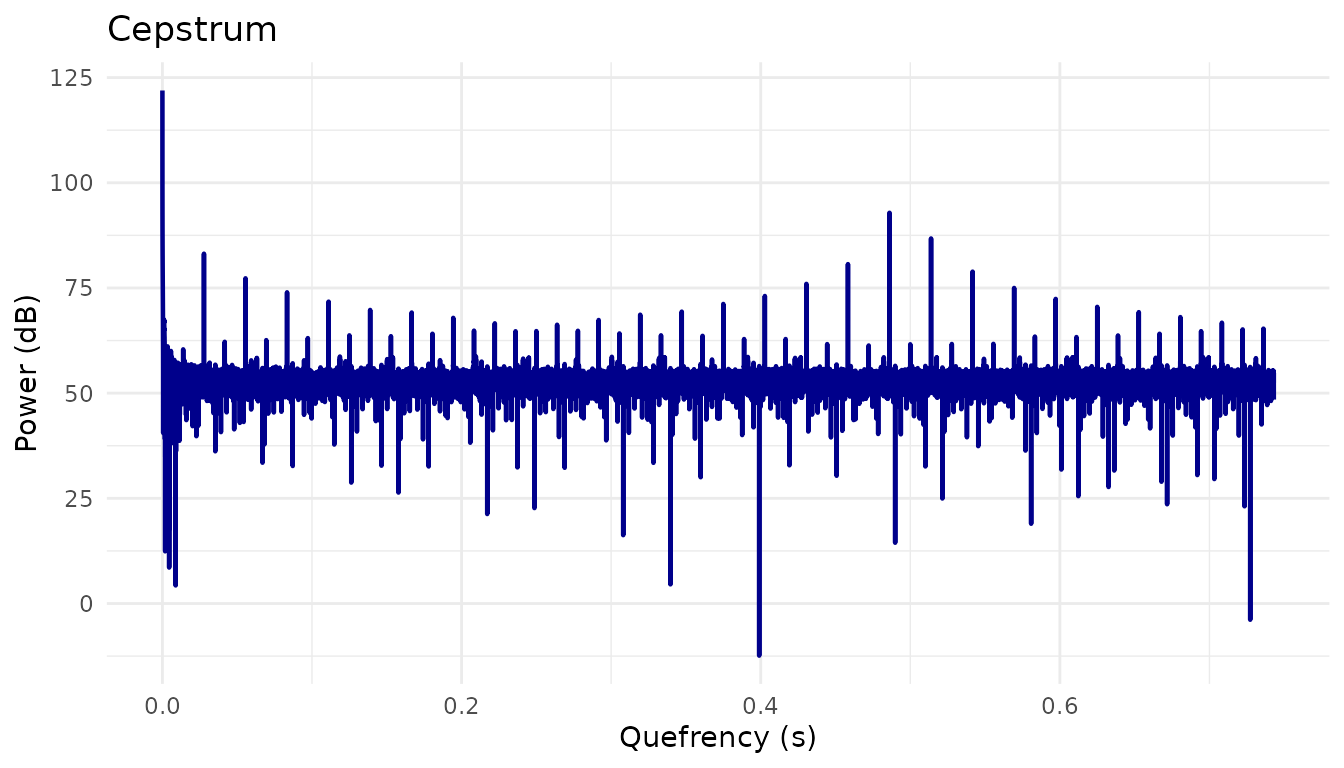

Cepstral Analysis

Cepstrum supports two views of the same data via its power argument: the default raw (signed) cepstrum, and a power = TRUE dB view used for peak picking. PowerCepstrogram extends this over time and underlies CPPS-based voice-quality measures.

cepstrum <- sound$to_cepstrum()
autoplot(cepstrum)                # raw view

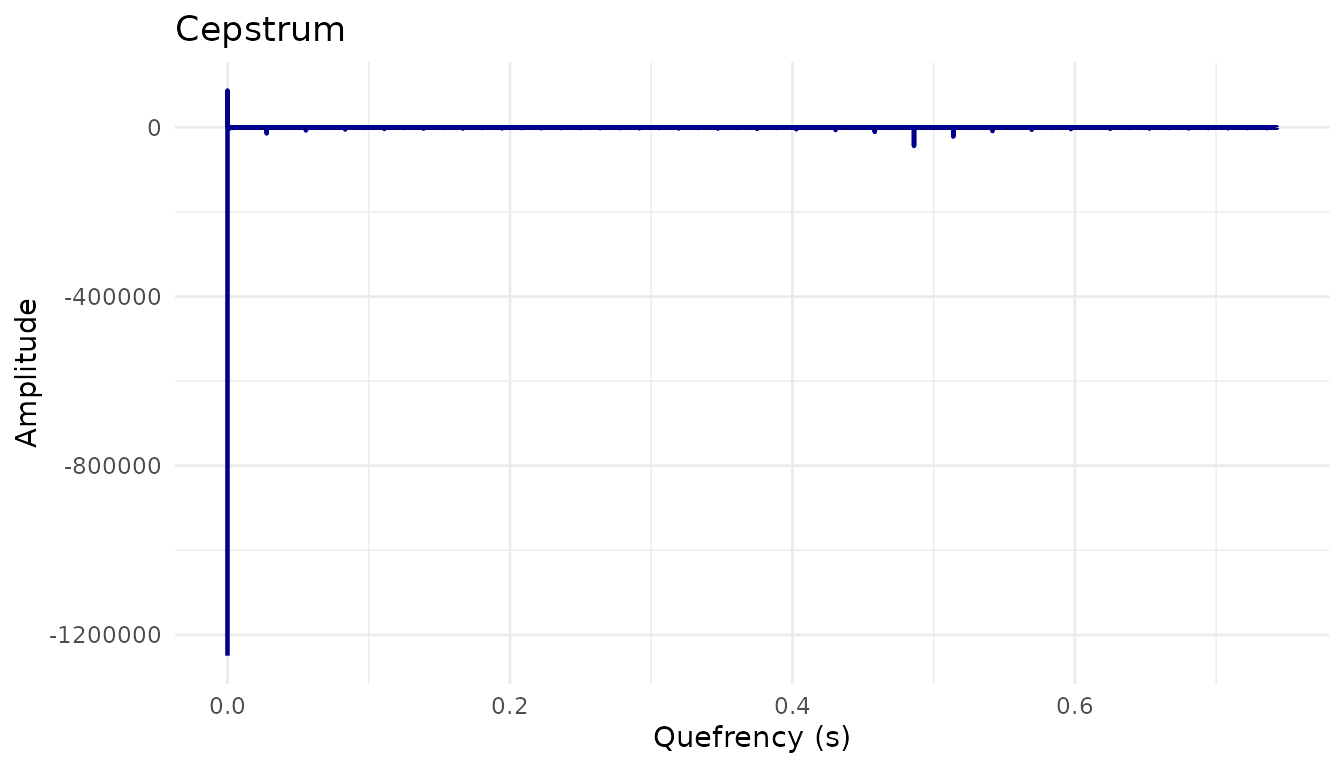

autoplot(cepstrum, power = TRUE)  # power (dB) view

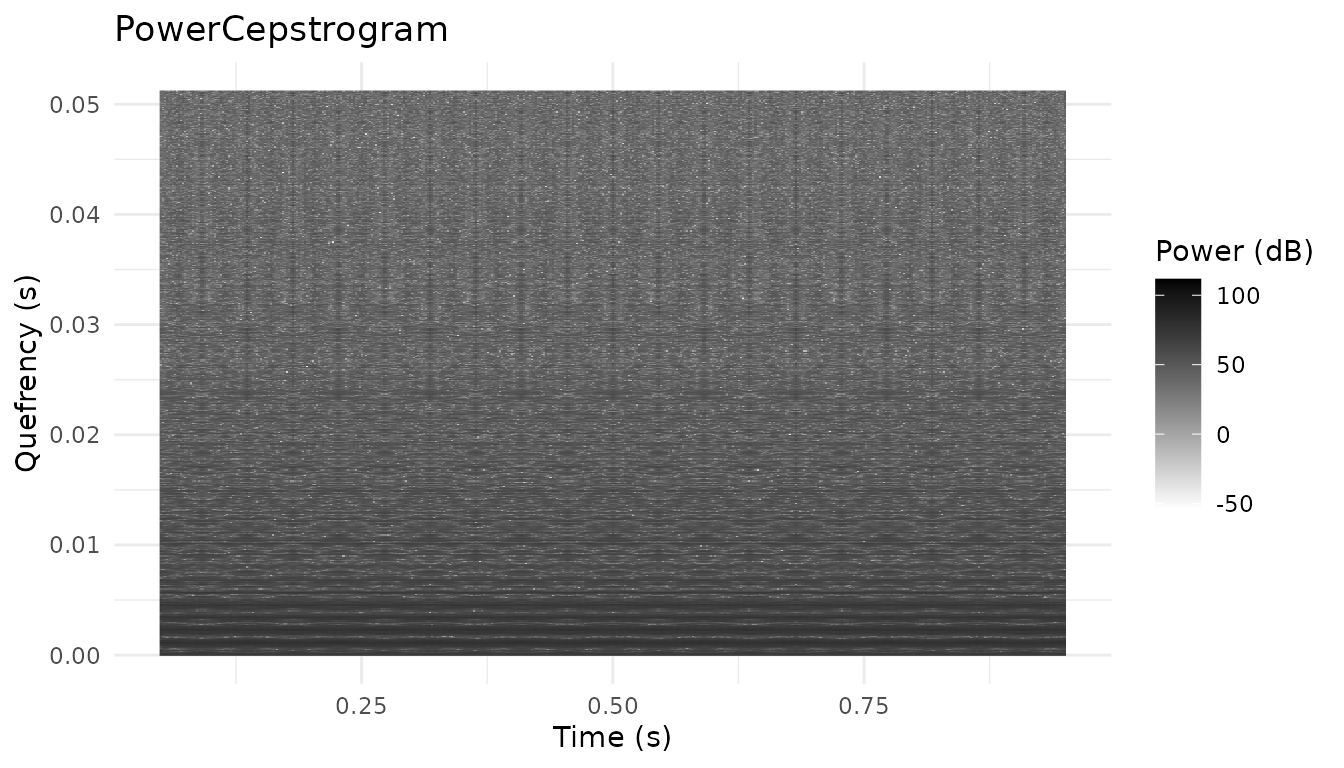

power_cepstrogram <- sound$to_powercepstrogram()
autoplot(power_cepstrogram)

Composing Multi-Layer Plots

Combine objects using autolayer().

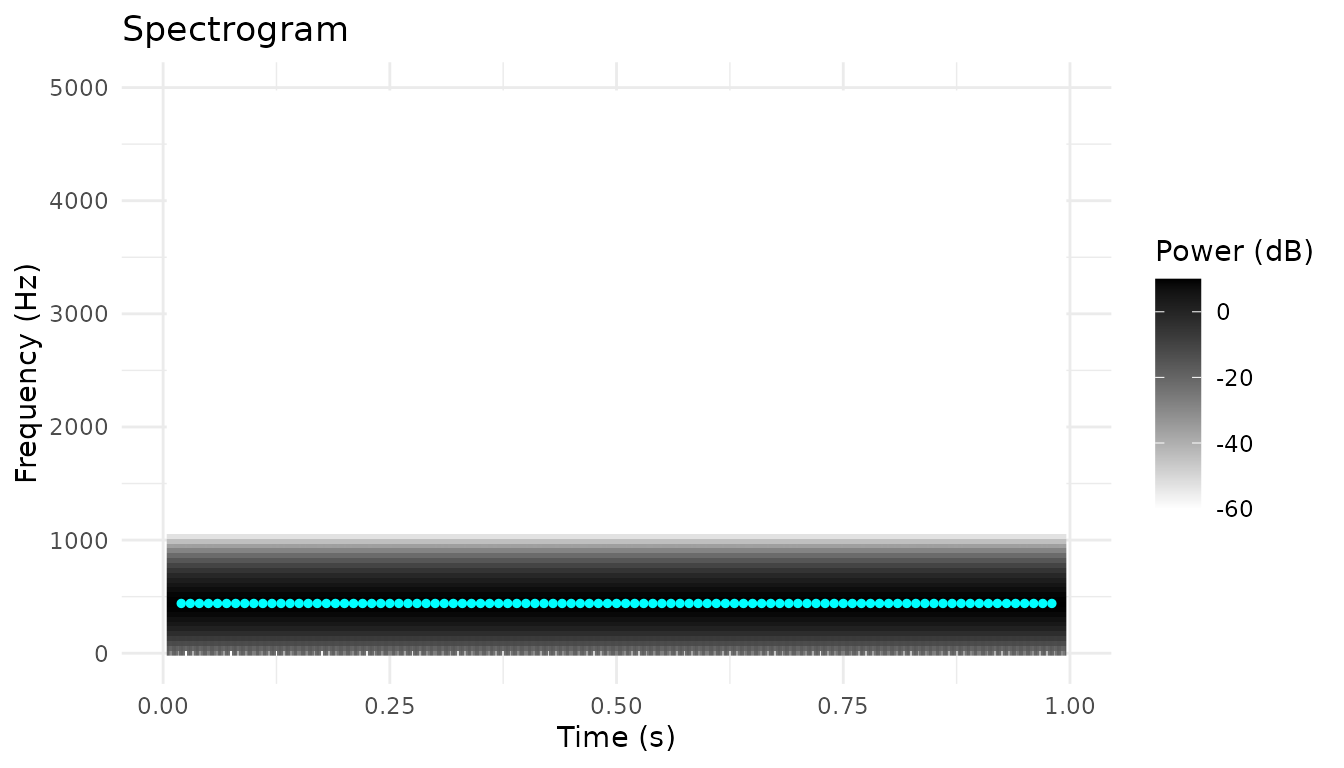

Spectrogram with Pitch Overlay

autoplot(spec, to_freq = 5000) +
  autolayer(pitch, color = "cyan", geom = "point")

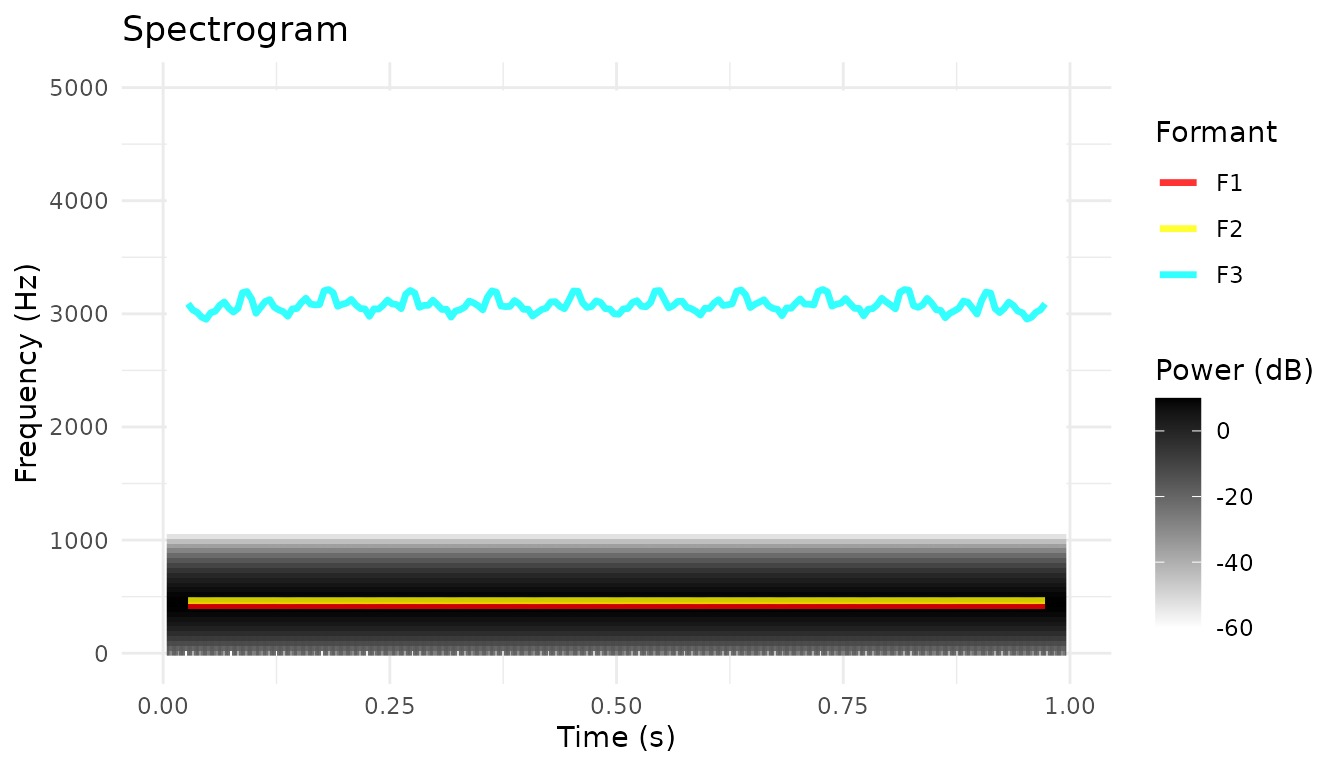

Spectrogram with Formant Tracks

autoplot(spec, to_freq = 5000) +
  autolayer(formant, max_formant = 3)

Spectrogram with Pitch and Formants

autoplot(spec, to_freq = 5000) +
  autolayer(formant, max_formant = 3) +
  autolayer(pitch, color = "white", geom = "point")

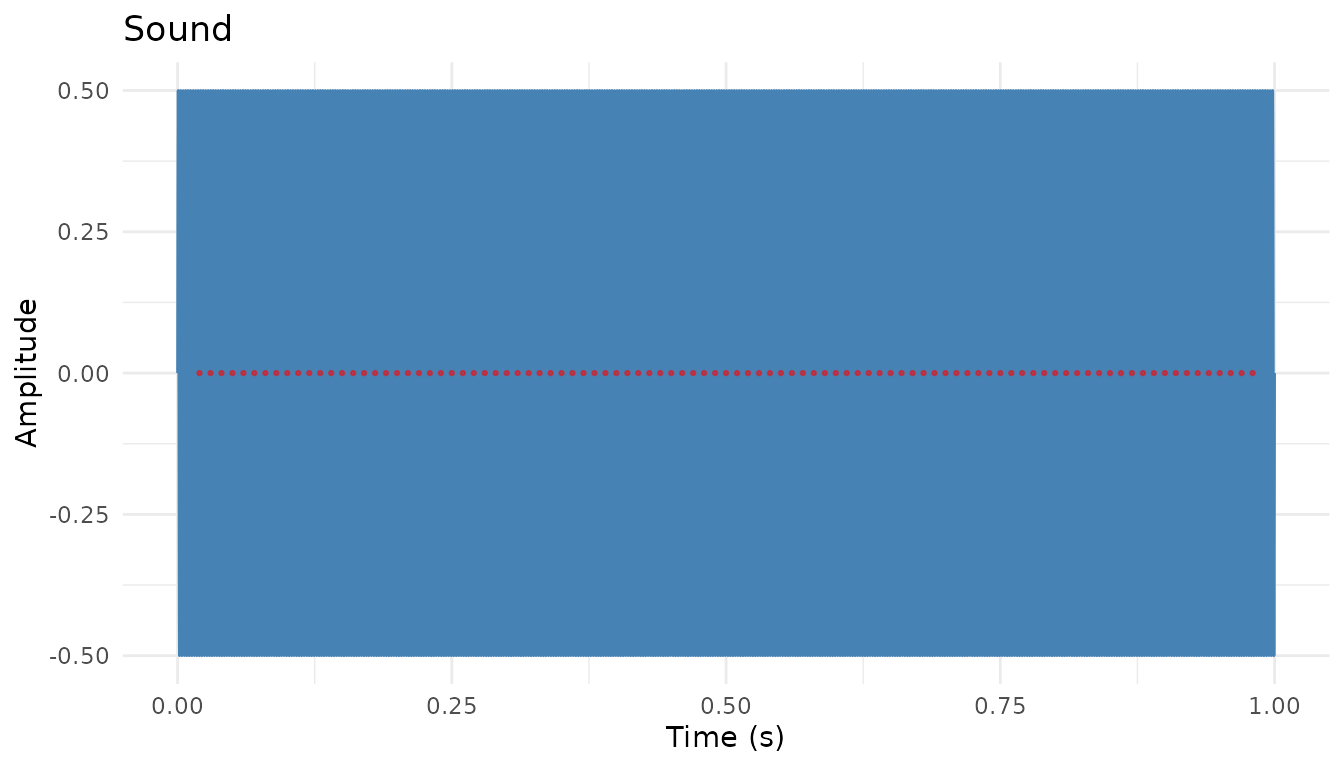

Sound with Pitch Overlay

Overlay pitch points on waveform (useful for seeing voicing):

# Scale pitch to amplitude range for overlay
pitch_df <- pitch$as_data_frame()
pitch_df <- pitch_df[!is.na(pitch_df$frequency) & pitch_df$frequency > 0, ]

autoplot(sound) +
  geom_point(
    data = pitch_df,
    aes(x = time, y = 0),
    color = "red", size = 0.5, alpha = 0.5
  )

Customization with ggplot2

All autoplot/autolayer methods return ggplot2 objects, so you can customize freely.

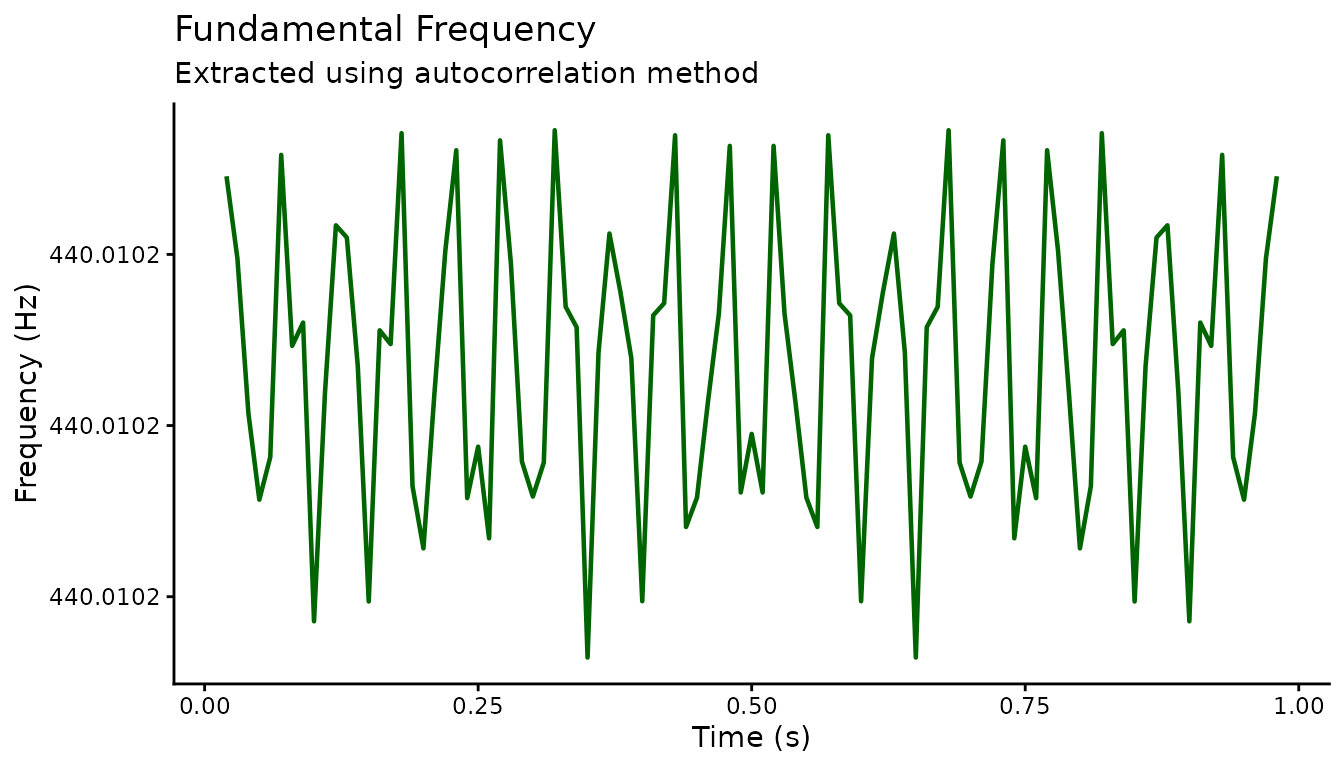

Custom Themes

autoplot(pitch) +
  theme_classic() +
  labs(
    title = "Fundamental Frequency",
    subtitle = "Extracted using autocorrelation method"
  )

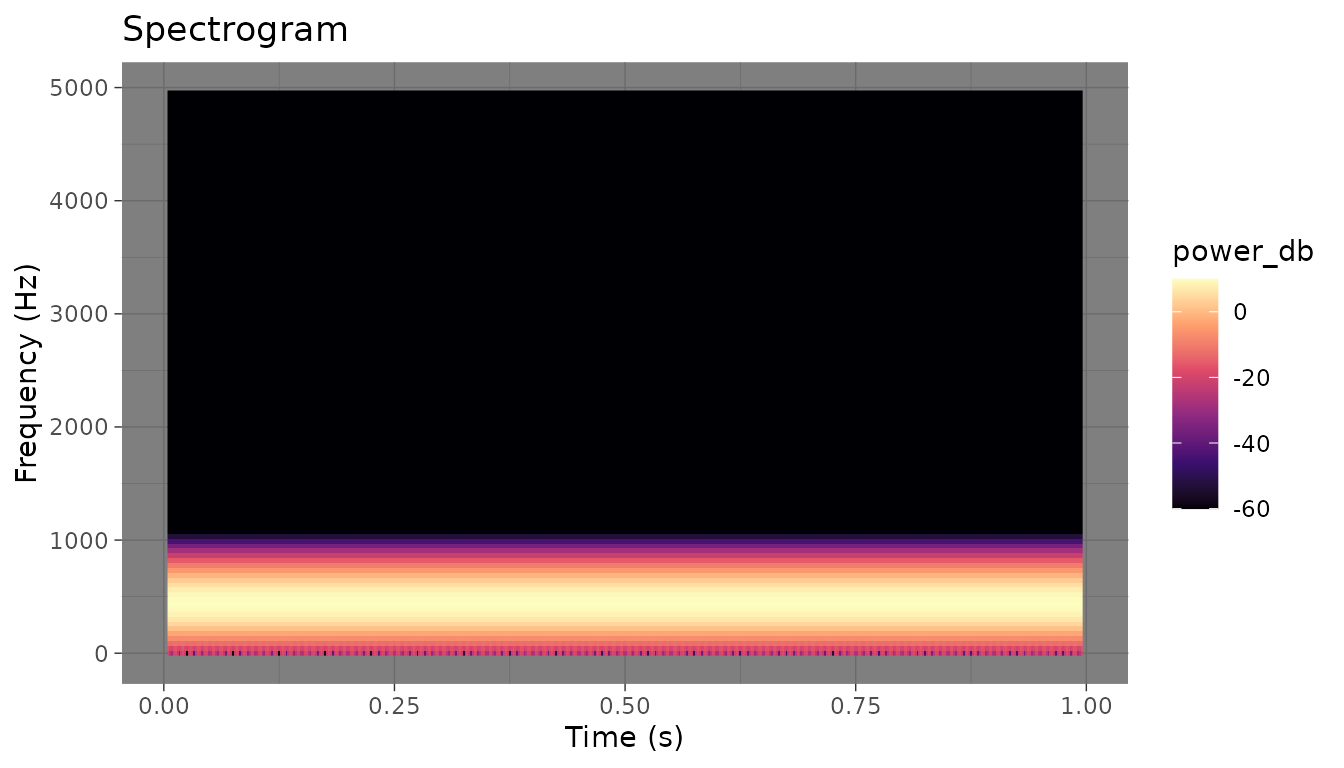

Custom Colors

autoplot(spec, to_freq = 5000) +
  scale_fill_viridis_c(option = "magma") +
  theme_dark()
#> Scale for fill is already present.
#> Adding another scale for fill, which will replace the existing scale.

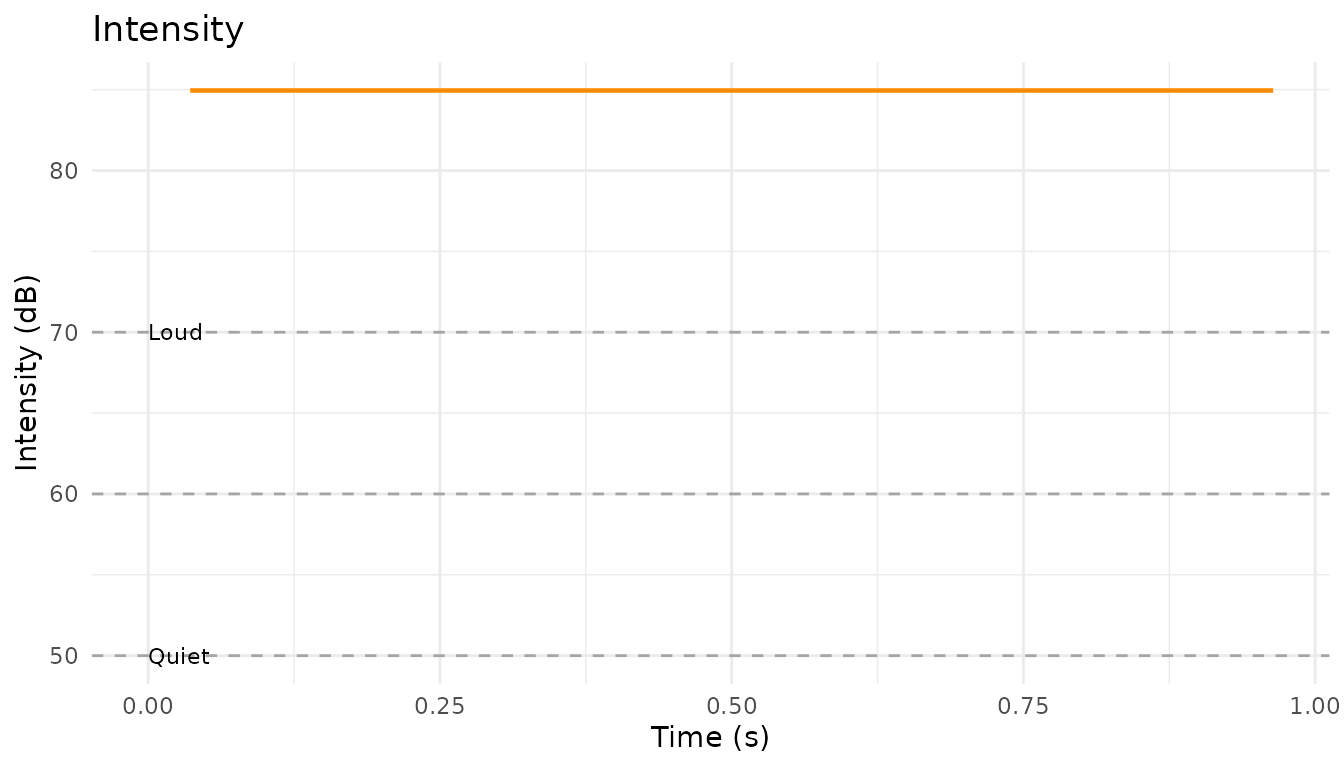

Faceting by Time Windows

# Create intensity plot with reference lines
autoplot(intensity) +
  geom_hline(yintercept = c(50, 60, 70), linetype = "dashed", alpha = 0.3) +
  annotate("text", x = 0, y = 70, label = "Loud", hjust = 0, size = 3) +
  annotate("text", x = 0, y = 50, label = "Quiet", hjust = 0, size = 3)

Statistical and Alignment Tools

pladdrr also wraps a few non-acoustic-domain Praat objects used in analysis pipelines: PCA for dimensionality reduction, and DTW for aligning two sounds.

PCA: Scree, Scores, and Combined Plots

autoplot.PCA()’s type argument selects a scree plot (variance explained per component), a scores plot (observations projected onto the first two components), or "both" combined side-by-side via the optional patchwork package.

set.seed(1)
formant_matrix <- matrix(rnorm(200), nrow = 20)
pca <- pca_from_matrix(formant_matrix)

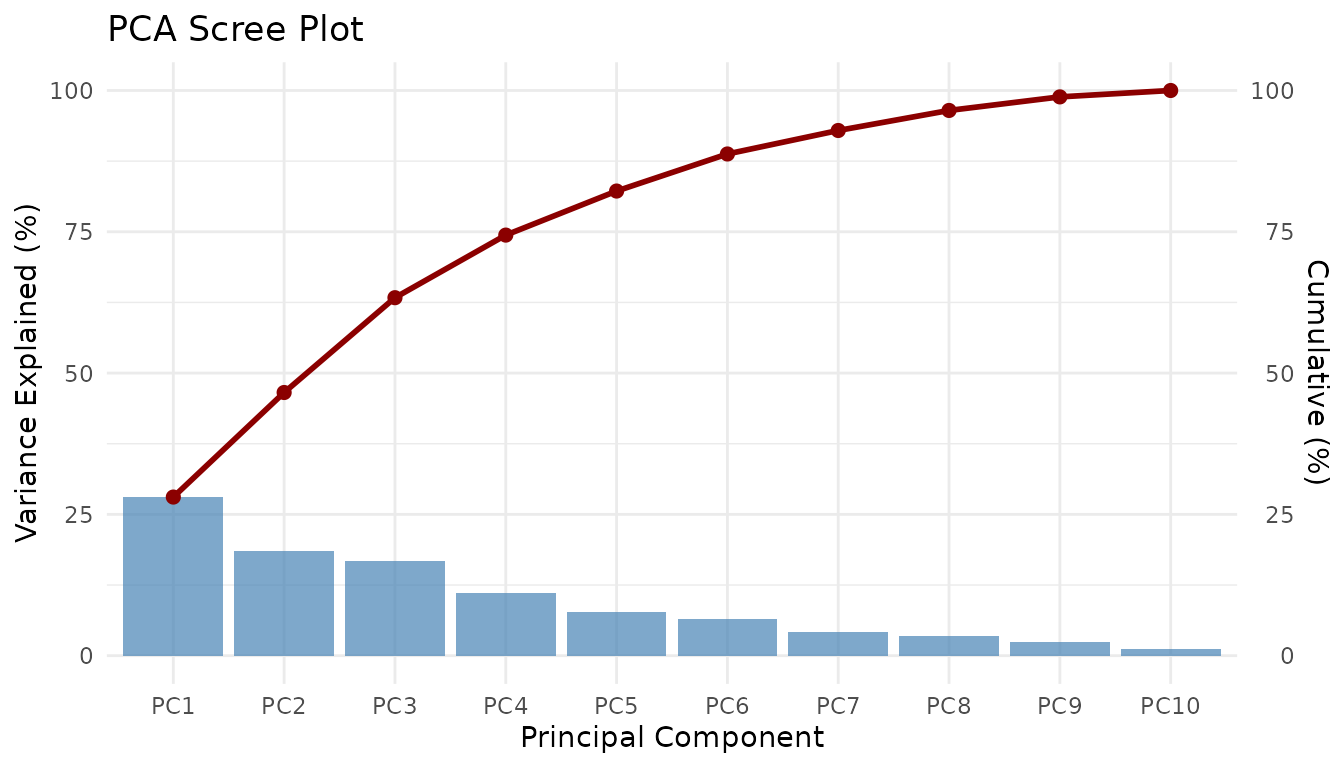

autoplot(pca, type = "scree")

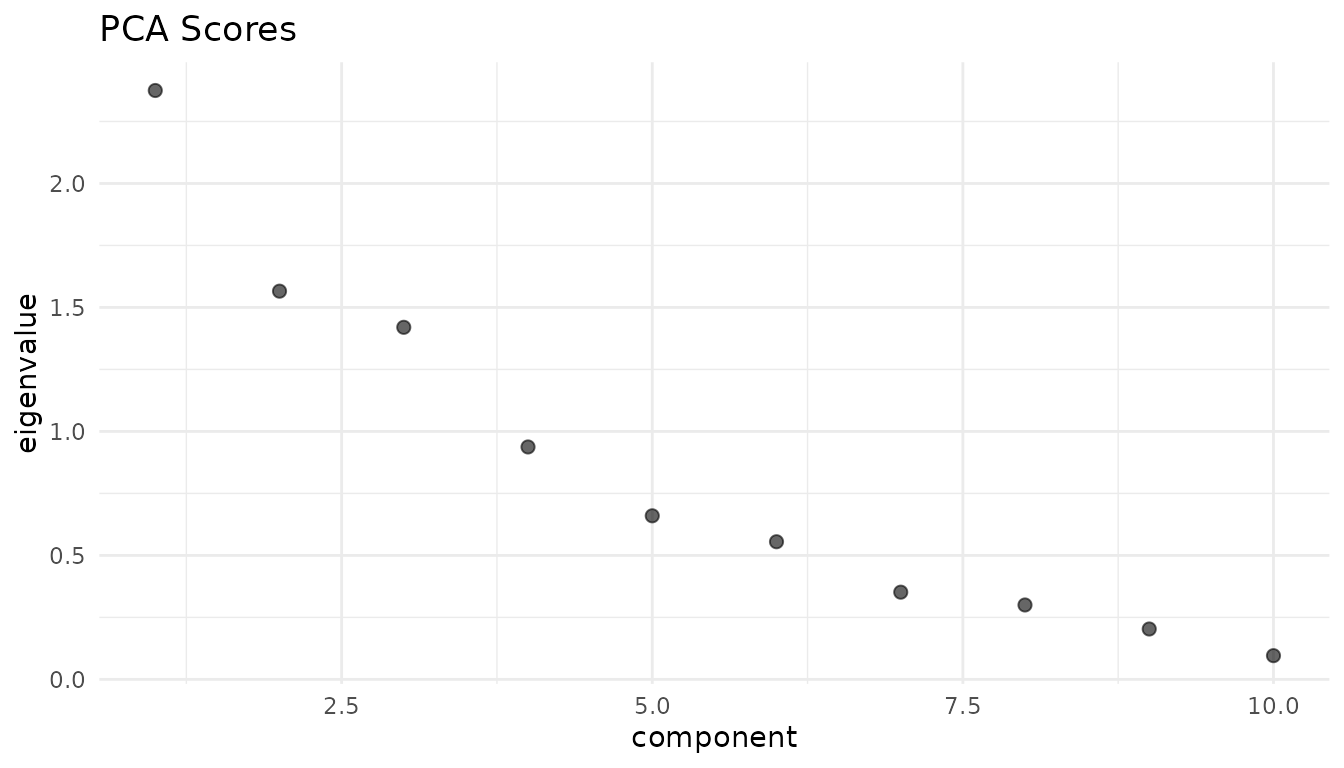

autoplot(pca, type = "scores")

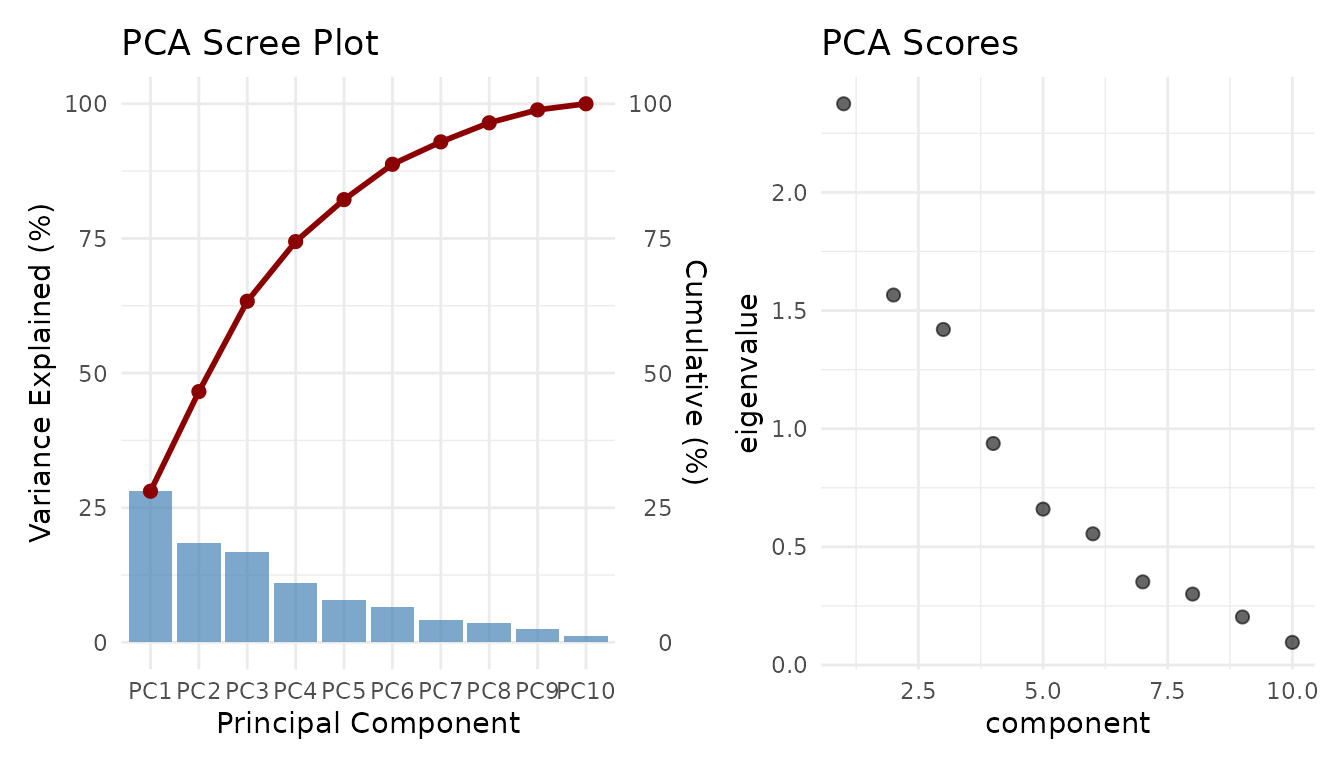

autoplot(pca, type = "both")

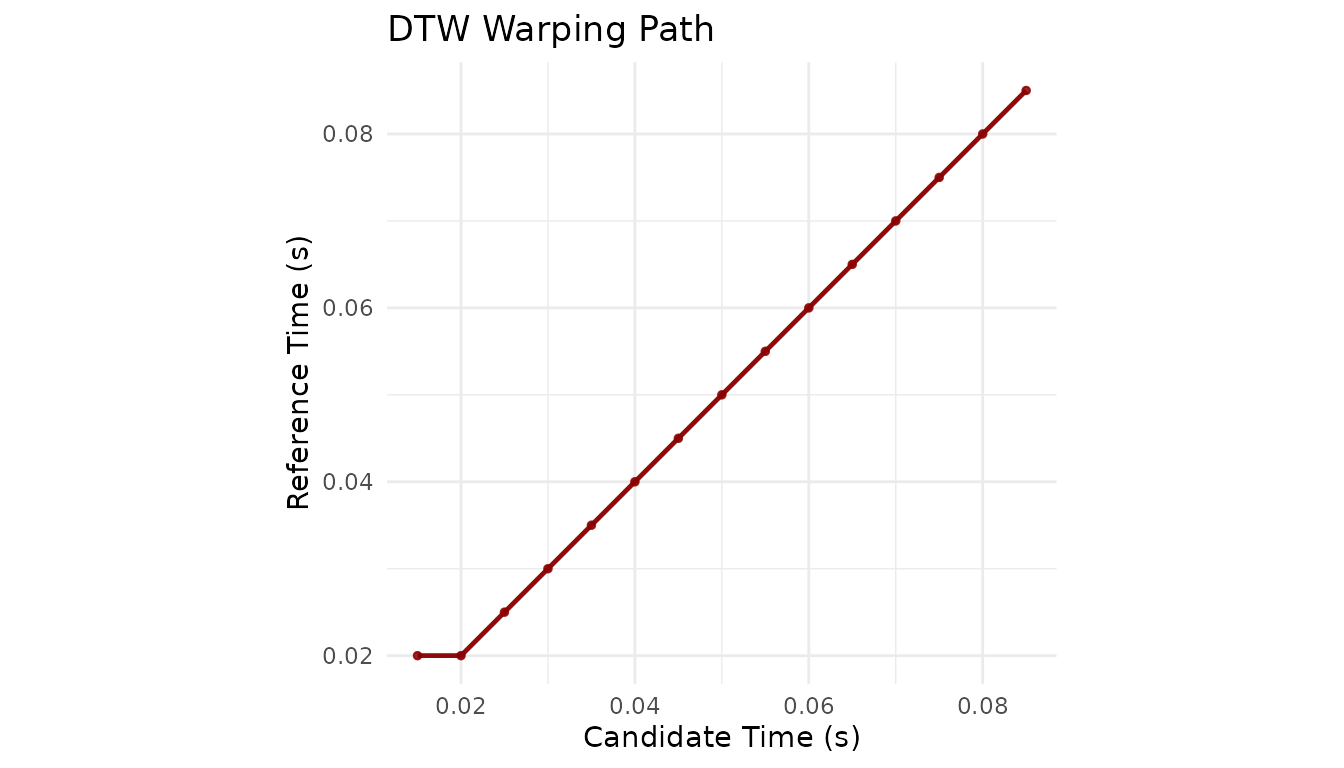

DTW Warping Path

Dynamic Time Warping aligns two sounds (or feature sequences) that differ in timing — autoplot.DTW() plots the resulting warping path, and autolayer.DTW() overlays it on an existing plot.

dtw_sound <- generate_sine_wave(440, 0.1, sampling_rate = 16000)
dtw <- sounds_to_dtw(dtw_sound, dtw_sound)
autoplot(dtw)

autoplot(dtw) +
  autolayer(dtw, color = "orange")
#> Warning: Duplicated aesthetics after name standardisation:
#> colour

Parameter Reference

Common Parameters

Parameter Description Default
from_time Start time (seconds) NULL (start)
to_time End time (seconds) NULL (end)
color Line/point color varies

Spectrogram Parameters

Parameter Description Default
from_freq Min frequency (Hz) NULL (0)
to_freq Max frequency (Hz) NULL (Nyquist)
dynamic_range Dynamic range (dB) 70

Formant Parameters

Parameter Description Default
max_formant Max formant number 3
colors Color vector for formants auto

Pitch autolayer Parameters

Parameter Description Default
geom “line” or “point” “line”

Comparison with plot() Methods

pladdrr also provides traditional plot() S3 methods. Here’s when to use each:

Use Case Recommended
Quick single-object plot plot(object) or autoplot(object)
Multi-object composition autoplot() + autolayer()
Maximum customization autoplot() (returns ggplot2)
Base R graphics pipeline plot()

Saving Plots

# Create composed plot
p <- autoplot(spec, to_freq = 5000) +
  autolayer(formant, max_formant = 3) +
  autolayer(pitch, color = "cyan") +
  theme_minimal() +
  labs(title = "Acoustic Analysis")

# Save as PDF (vector)
ggsave("analysis.pdf", p, width = 10, height = 6)

# Save as PNG (high-res)
ggsave("analysis.png", p, width = 10, height = 6, dpi = 300)

Summary

The autoplot/autolayer pattern provides:

  • Composability - Layer multiple acoustic objects
  • Consistency - Same interface for all object types
  • Customization - Full ggplot2 compatibility
  • Publication quality - Vector graphics output

For more visualization options, see vignette("visualization").
