Plot Harmonicity (HNR) Contour

Creates a harmonics-to-noise ratio contour visualization.

Usage

# S3 method for class 'Harmonicity'
plot(
  x,
  from_time = NULL,
  to_time = NULL,
  garnish = TRUE,
  title = "Harmonicity (HNR)",
  color = "darkviolet",
  ...
)

Arguments

x

Harmonicity object

from_time

Start time in seconds (NULL = from beginning)

to_time

End time in seconds (NULL = to end)

garnish

Logical. Add axis labels and title (default: TRUE)

title

Character. Plot title (default: "Harmonicity")

color

Character. Line color (default: "darkviolet")

...

Additional arguments passed to the underlying function or ignored.

Value

A ggplot2 object

Examples

sound <- Sound$create_tone(frequency = 220, duration = 1.0)
harmonicity <- sound$to_harmonicity_cc()

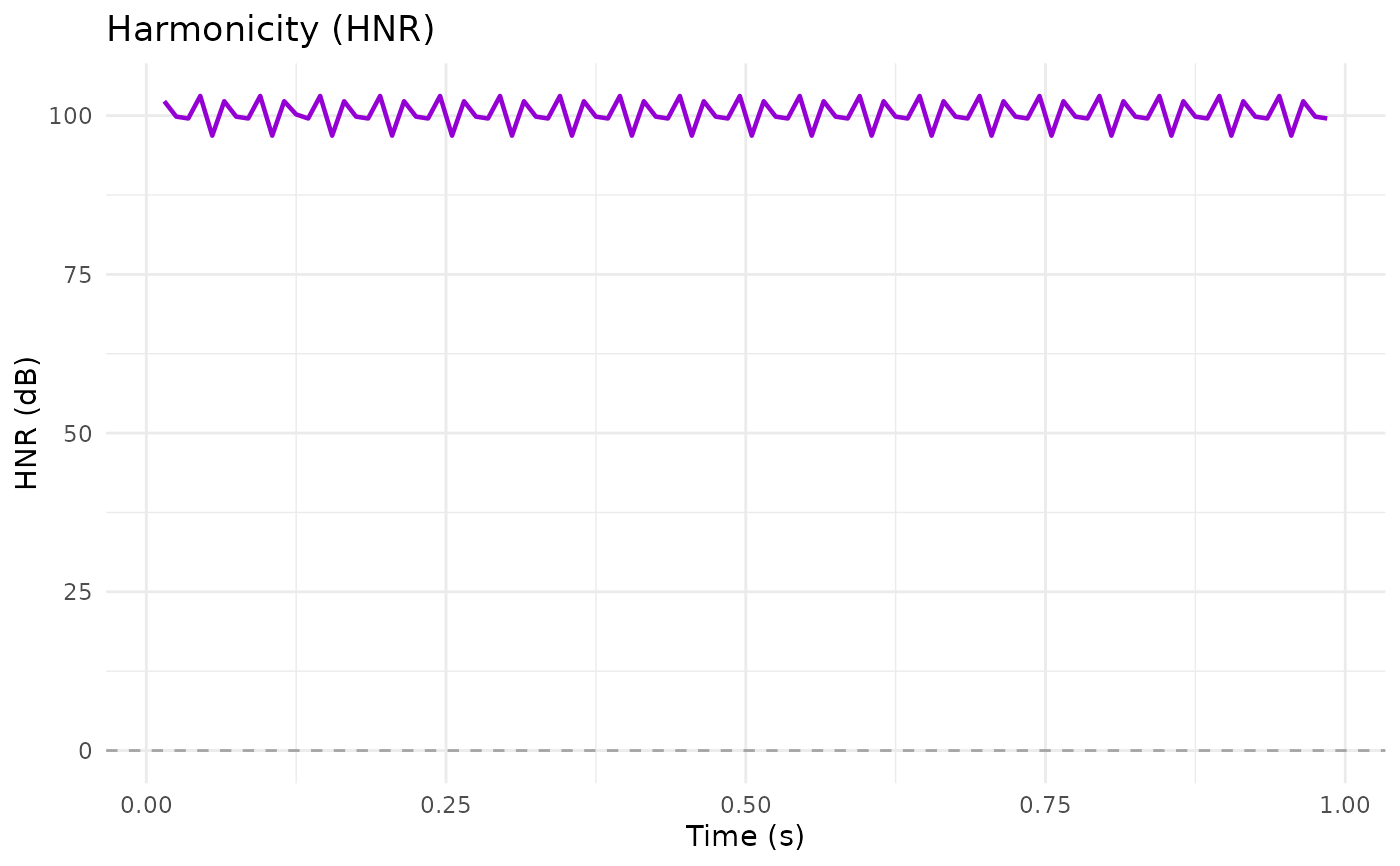

# Basic plot
plot(harmonicity)

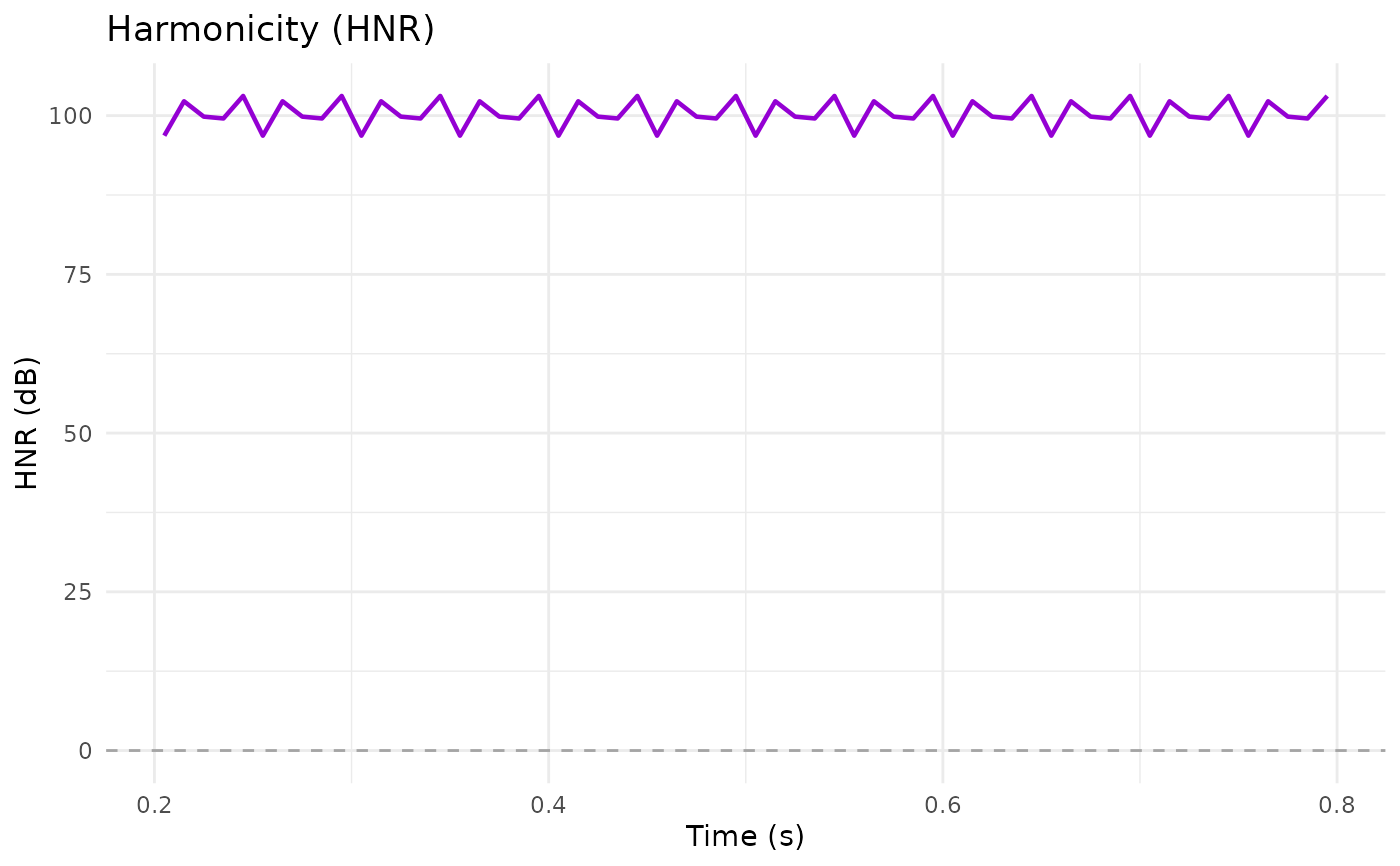

# Time range
plot(harmonicity, from_time = 0.2, to_time = 0.8)
