Plot PowerCepstrogram

Creates a heatmap visualization of a power cepstrogram showing how the cepstral spectrum varies over time, similar to a spectrogram.

Usage

plot_powercepstrogram(
  cepstrogram,
  time_range = NULL,
  quefrency_range = c(0, 0.05),
  db_range = NULL,
  color_scale = c("viridis", "inferno", "magma", "plasma"),
  show_cpp_contour = FALSE,
  contour_color = "white",
  title = NULL,
  theme = c("minimal", "bw", "classic")
)

Arguments

cepstrogram

PowerCepstrogram object

time_range

Numeric vector. c(start, end) time range to display (default: NULL = auto)

quefrency_range

Numeric vector. c(min, max) quefrency range to display (default: c(0, 0.05))

db_range

Numeric vector. c(min, max) dB range for color scale (default: NULL = auto)

color_scale

Character. Color palette: "viridis", "inferno", "magma", "plasma" (default: "viridis")

show_cpp_contour

Logical. Overlay CPP contour over time (default: FALSE)

contour_color

Character. Color for CPP contour line (default: "white")

title

Character. Plot title (default: auto-generated)

theme

Character. ggplot2 theme (default: "minimal")

Value

A ggplot2 object

Examples

sound <- Sound$create_tone(frequency = 220, duration = 0.5)
cepstrogram <- sound$to_powercepstrogram(pitch_floor = 60, time_step = 0.002)

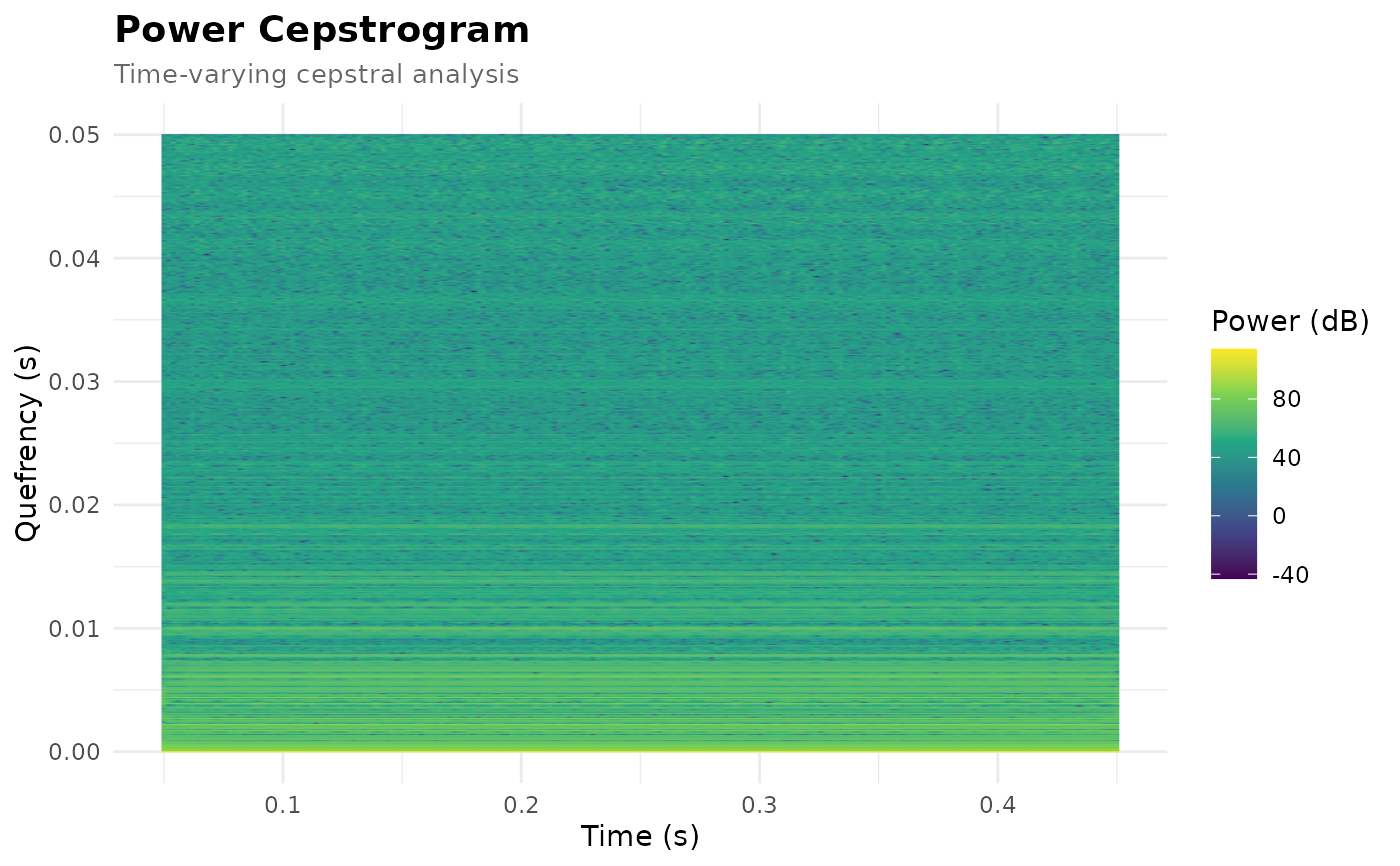

# Basic plot
plot_powercepstrogram(cepstrogram)

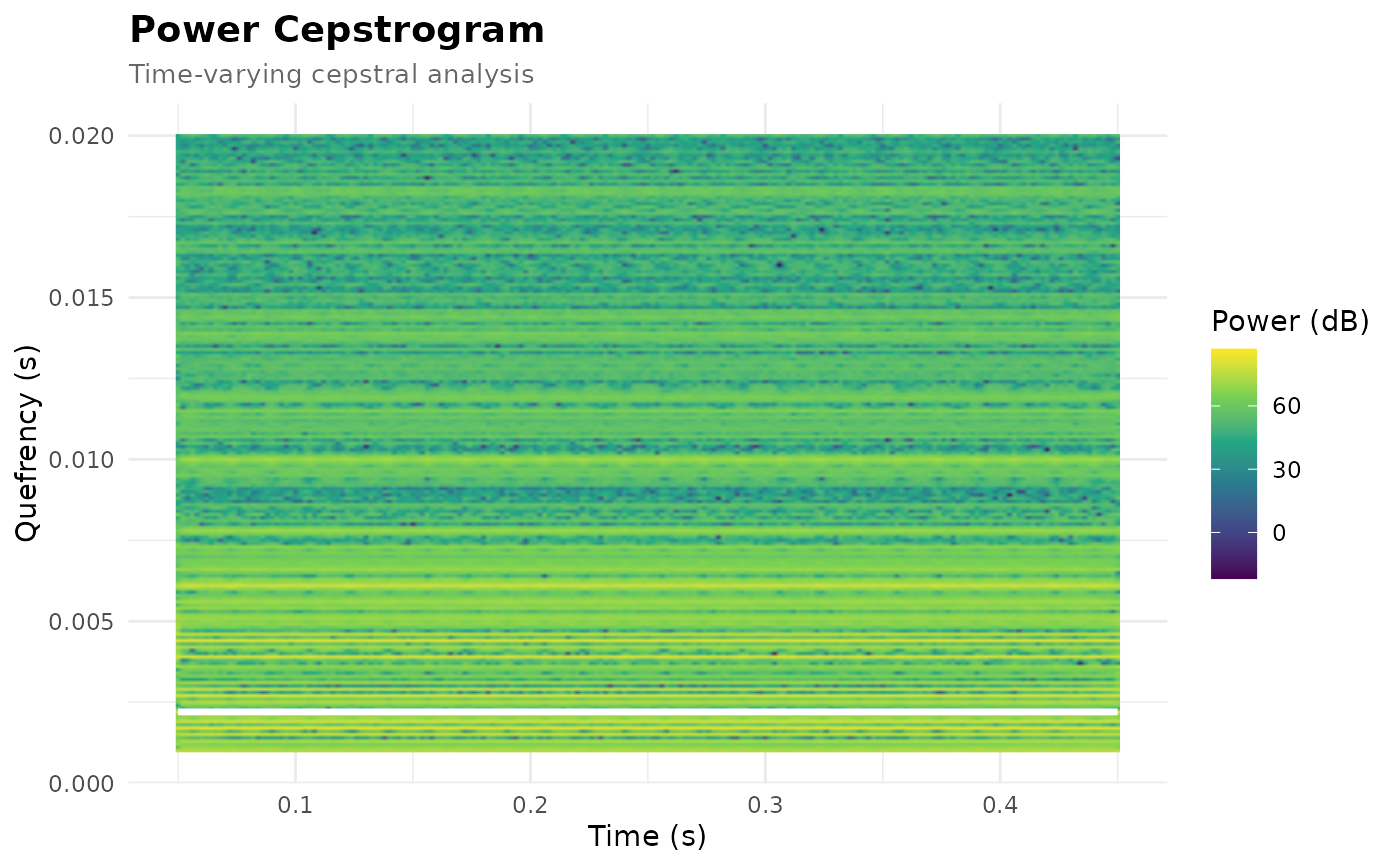

# With CPP contour
plot_powercepstrogram(cepstrogram,
                     show_cpp_contour = TRUE,
                     quefrency_range = c(0.001, 0.02))
