Plot TextGrid with Sound Waveform — plot_textgrid

Creates a combined visualization showing a waveform with TextGrid annotation tiers overlaid. This replicates Praat's TextGrid_Sound_draw() function.

Usage

plot_textgrid_sound(
  textgrid,
  sound,
  tier = NULL,
  from_time = NULL,
  to_time = NULL,
  waveform_color = "steelblue",
  tier_colors = NULL,
  title = NULL,
  ...
)

Arguments

textgrid: TextGrid object
sound: Sound object
tier: Integer or character. Tier number or name to display (default: all)
from_time: Start time in seconds (NULL = from beginning)
to_time: End time in seconds (NULL = to end)
waveform_color: Character. Waveform color (default: "steelblue")
tier_colors: Character vector. Colors for each tier (default: auto)
title: Character. Plot title (default: NULL)
...: Additional arguments passed to plot methods

Value

A combined ggplot object (requires patchwork or gridExtra)

Examples

if (requireNamespace("patchwork", quietly = TRUE) ||
    requireNamespace("gridExtra", quietly = TRUE)) {
  sound <- Sound$create_tone(frequency = 440, duration = 1.0)
  textgrid <- TextGrid$create(0, 1, "words")
  textgrid$set_interval_text("words", 1, "tone")

  # Basic combined plot
  plot_textgrid_sound(textgrid, sound)

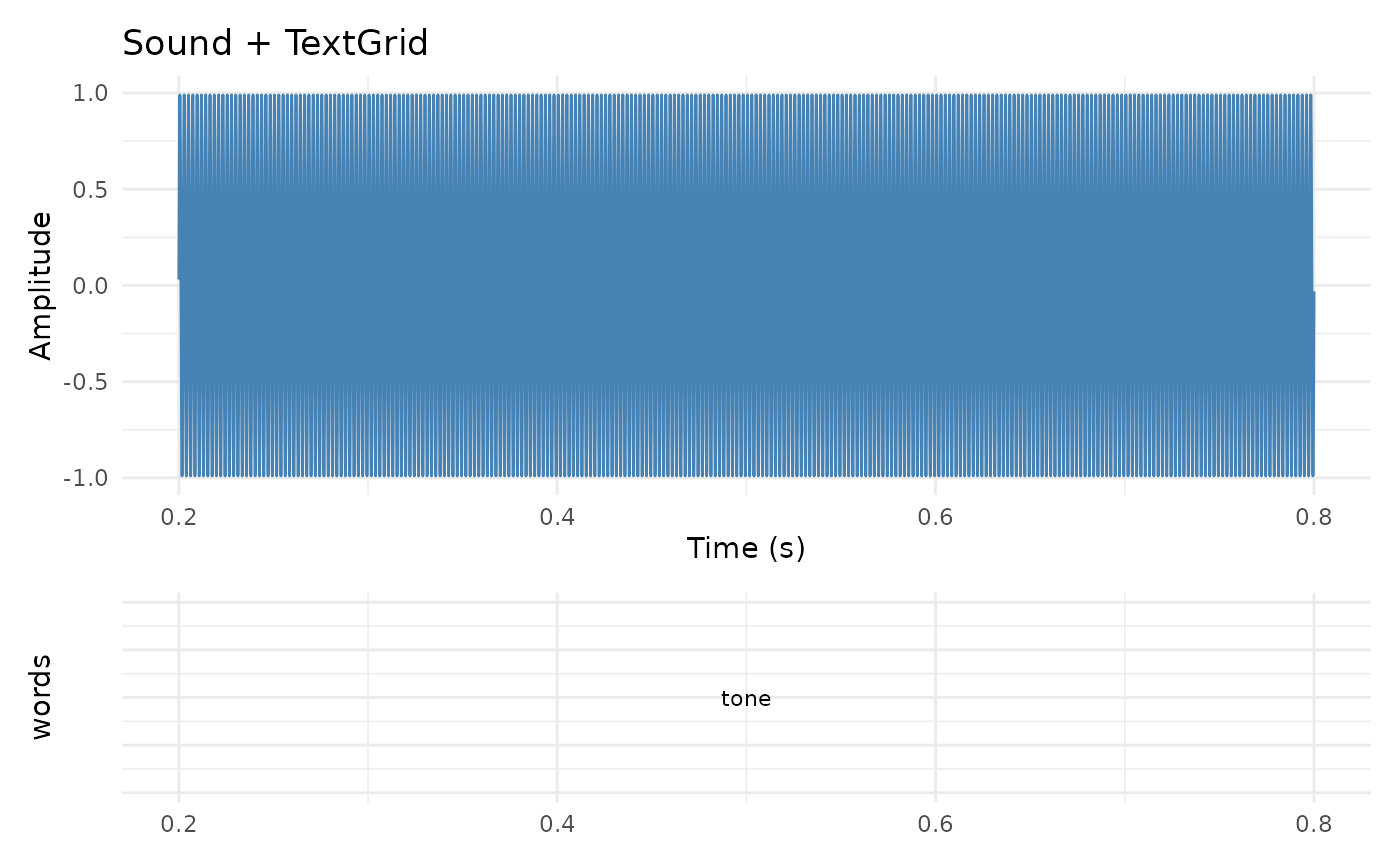

  # Single tier with time range
  plot_textgrid_sound(textgrid, sound, tier = 1,
                     from_time = 0.2, to_time = 0.8)
}
